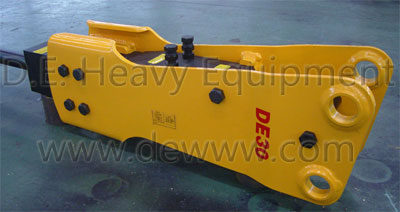

| DE30 top type breaker is made of new material, featuring high intensity and anti-weariness. The external uses high wear-resistant steel plate, which ensures the endurance and prolongs the service life. |
| Model : DE-30 |
| Total Weight: 140(kg) |
| Total Length: 1140(mm) |
| Working Pressere:
90-120(kg/cm2) 1280-1707(psi) |
| Oil Flow:
25-40(l/min) 6.6-10.5(gal/min) |
| DPM: 550-950(bmp) |
| Hose Diameter: 1/2(inch) |
| Rod Diameter: 53(mm) 2.1(inch) |
| Rod Weight: 9(kg) |
| Applicable Carrier: 2.5-4.5(ton) |
Applicable Excavator Model：
CAT:CAT303,CAT305
DOOSAN DAEWOO：DH30 SOLAR30/035 DSL602
VOLVO：EC30/25/35 ZL302
HITACHI：EX25/27/30/3 3/34
KOMATSU：PC05/PC07-2
HYUNDAI：HX15SR
CASE：CK23 CK28 CK31 40XT 60XT 1830 |
|
|
|
